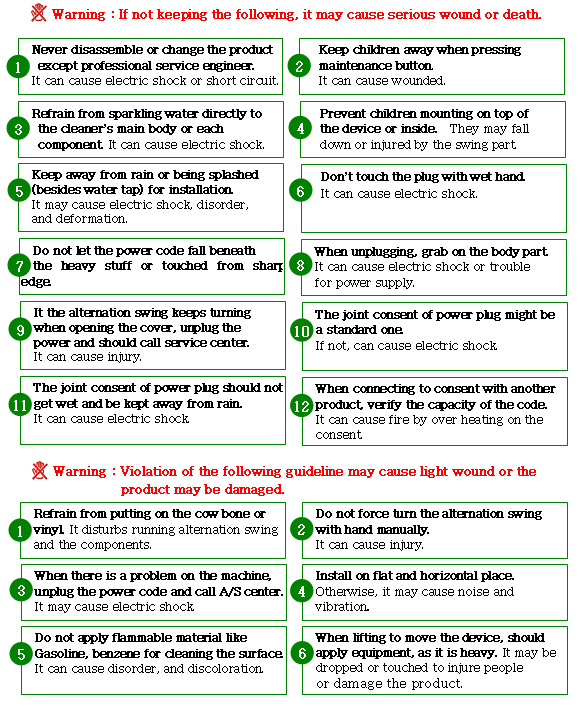

   Notice for safety



   Resolving problem

  1. General situation

Çö»ó
¿øÀÎ
ó¸®
Power lamp is kept on It is normal
Power code plugged in
to condenser,
but still not working
Is the plug fit in well? Plug in completely
Is the cover closed? Close the cover
Power lamp is not on Call A/S center
Noise of blast It is the noise when Big
trash is put in and touches
the wall of fermentation tank.
Remove the trash jammed.
Decomposition takes
too long or won¡¯t
decomposing
Is the ventilation hole blocked
from inside the fermentation bath?

Clean with old brush.
Not blowing at the end of
ventilation hole
The ventilation hole in
fermentation tank is blocked
or fan is out of order. Call
A/S center. .
Isn¡¯t it warm inside fermentation
tank?
Problem on heater.
Call A/S center.
Smells out. Blowing at the end of
ventilation hole?
The ventilation hole in
fermentation tank is blocked
or fan is out of order.
Call A/S center.
Food trash is stuck to entrance. Clean with cloths.
Isn't the cover open? Close the door completely.
When open cover, it
forms water-drop,
and flow down.
Isn¡¯t the ventilation hole blocked
from fermentation tank inside?
Clean with old brush.
Isn't it too humid? Stop using for 2~5 days and
wait.
Isn¡¯t it blowing out form the end of
ventilation hole?
The ventilation hole in
fermentation tank is blocked
or fan is out of order.
Call A/S center.
It steams when
opening cover
Heating the food trash to help
microorganism to decompose.
The steam is normal.

  2. ¿îÀü Ç¥½Ãâ¿¡ Ç¥½Ã »çÇ×
¹®ÀÚÀÇ Ç¥½Ã
¿øÀÎ
ó¸®
Disorder on Flow Out fan Call A/S Center
Disorder on heating with Heater 2
Disorder on flow In Fan
Disorder on Ozone Supply
Disorder on Motor Forward
Disorder on Motor reverse
Disorder on heating with Heater 2
Emergency S/W On Turn emergency S/W Off
Limit S/W On/Off It is the message when opening/closing
the cover. It¡¯s normal state.

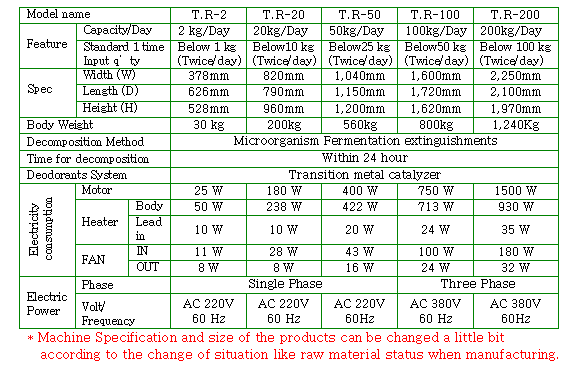

   Machine Specification by Products

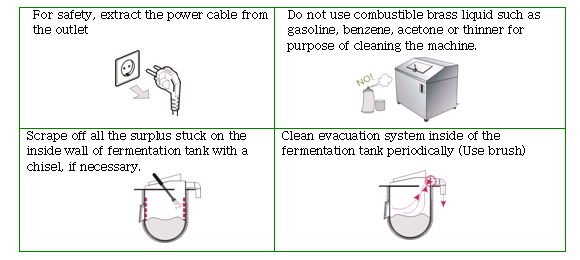

   Machine cleaning procedure


   A/S Representative Contact

  • Address : Rm808 Regent Officetel 547-8 Gueui-Dong Gwangjin-Gu, Seoul, Korea
  • Tel No. : 82-2-455-5424
  • Fax No. : 82-2-455-5429
